Easy 6 or 12 kN pile to bearer connection kits

Uses

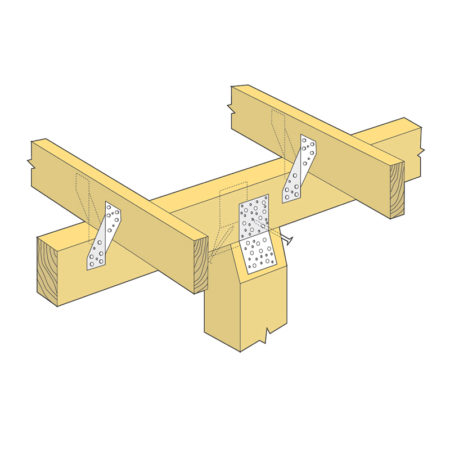

PBK6S allows CANTILEVER Pile to be in line with and same height as other piles. Connection detail covers bearer sizes up to 200mm deep, joists up to 250mm deep. PBK12S allows ANCHOR/BRACED Pile to be in line with and same height as other piles. Connection detail covers both Anchor and Braced Piles, with bearer sizes up to 200mm deep, joists up to 250mm deep.

Features

  • All components supplied as one complete package
  • Stainless steel components for use in environments with severe corrosion risk
  • Complies with NZ Building Code – Clause B2 for a structural component with 50 year durability.

Application

For application and design capacity information, refer to the Pryda Builders Guide

Pile Bearer Kits

Product CodeSize
PBK6S240 x 86 35mm
PBK12S190 x 100 x 1mm
