6kN or 12kN Capacity fixing stud tie-down

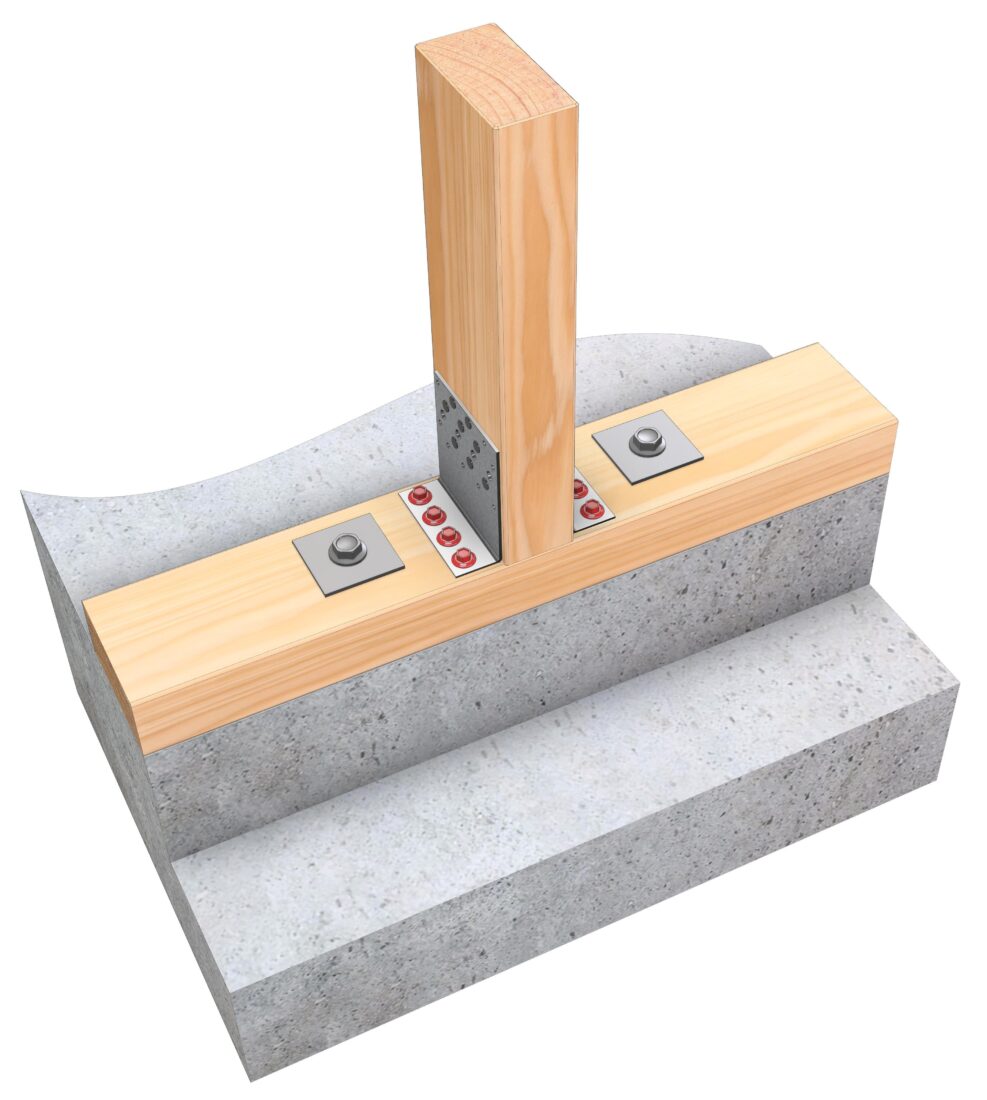

Fixing sheet braced wall panels to timber floors and concrete slabs (via bottom plate).


SIMPLE: A bracket that can be fixed with nails and screws using common on-site tools.
FAST: Able to be retrofitted if external wall lining / cladding already installed.
DURABLE: Made from 2mm thick G300 Steel galvanised to Z275.


For installation instructions for Wall, Roof and Floor Bracing, please refer to the Stud Anchor Data Sheet.

Pryda Stud Anchor

Product CodeSizePack Quantity
SBA85mm high x 30mm deep x 80mm wide
Nails 30 x 3.15
Screws 12g x 35mm hex head
5 Kits
