Versatile and cost-effective bracing product for roofs, ceilings, walls, and floors
USES
Pryda Strap Brace is suitable for bracing walls and truss/rafter roof construction (spans up to 12m) in residential buildings. Use Pryda Maxi Strap for larger spans and commercial and industrial buildings.
Pryda Tensioners provide a fast, reliable and simple method of tensioning long lengths of bracing strap.
FEATURES
SIMPLE: Can be cut to match any size or application, meaning you can do more, with less. Slim profile means studs do not need to be notched, saving time and cost.
FAST: Tensioner can be used with a drill to speed up tensioning. Unlike Speed or Angle Brace, can be partially fastened but not tensioned allowing for plumb adjustment of wall frames prior to tensioning.
DURABLE: Made from G550 Z275 Steel or Grade 304 Stainless steel.
INSTALLATION
For installation instructions for Wall, Roof and Floor Bracing, please refer to the Strap Brace Data Sheet.

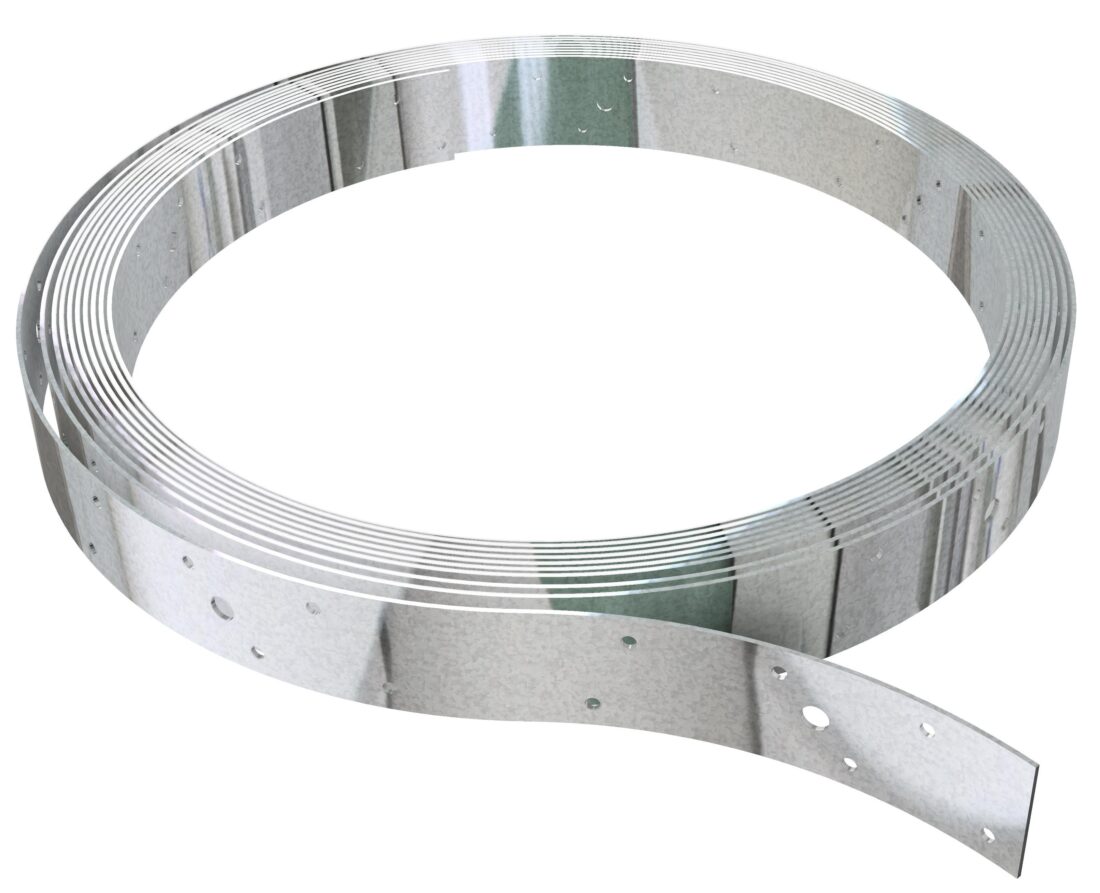

Pryda Strap Brace
| Product Code | Size | Pack Quantity |
|---|---|---|
| SB10 | 25 x 0.8mm x 10m | 10m Coil |
| SB30 | 25 x 0.8mm x 30m | 30m Coil |
| SB30T | 25 x 0.8mm x 30m with 5 Tensioners | 30m Coil |
| SB15/S (Stainless Steel) | 25 x 0.8mm x 15m | 30m Coil |
Pryda Maxi Strap
| Product Code | Size | Pack Quantity |
|---|---|---|
| SBI | 50 x 0.8mm x 30m | 30m Coil |
| SBI/15 | 50 x 0.8mm x 15m | 15m Coil |
| SBI/S (Stainless Steel) | 50 x 0.8mm x 30m | 30m Coil |

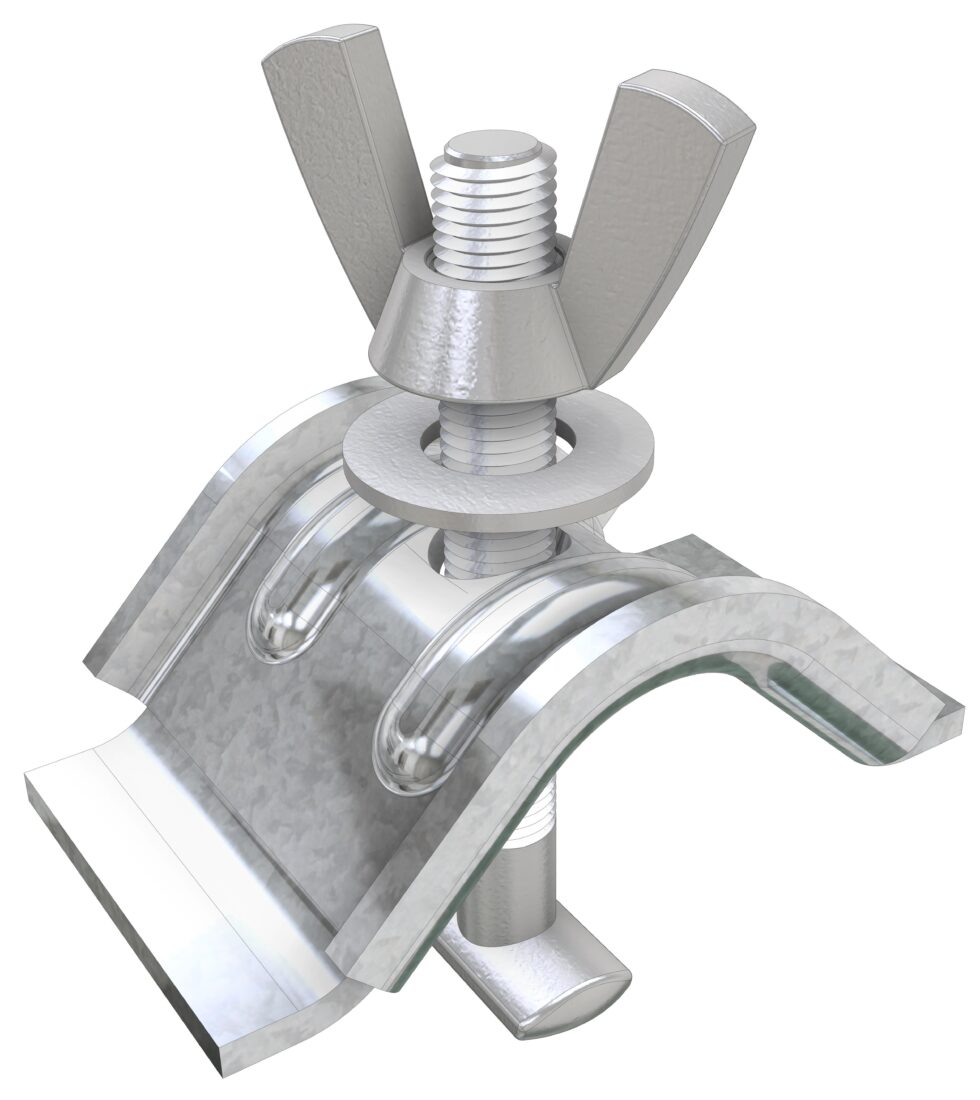

Pryda Tensioners (for Strap Brace and Maxi Strap)
| Product Code | Size | Pack Quantity |
|---|---|---|
| SBT | 25mm | 40 (8 bags of 5) |
| SBI/T | 50mm | 1 |
| SBT/SS (Stainless Steel) | 25mm | 1 |
| SBI/TS (Stainless Steel) | 50mm | 1 |
