A pressed steel bracket for fixing timber wall plates to concrete floors. Removes the need to pre-drill bottom plates. Cost saving over anchor bolts.
Uses
Alternative to NZS 3604:2011 Bolt/Dowel fixing of timber wall plate to concrete slab.
Features
SIMPLE: Easier wall frame placement – no drilling of plates and no lifting / locating over preplaced bolts.
FAST: Speedier concrete finishing – allows floating to slab edge and avoids messy hand trowelling around cast-in bolts.
DURABLE: 1.2mm G300 Z600 galvanised steel.

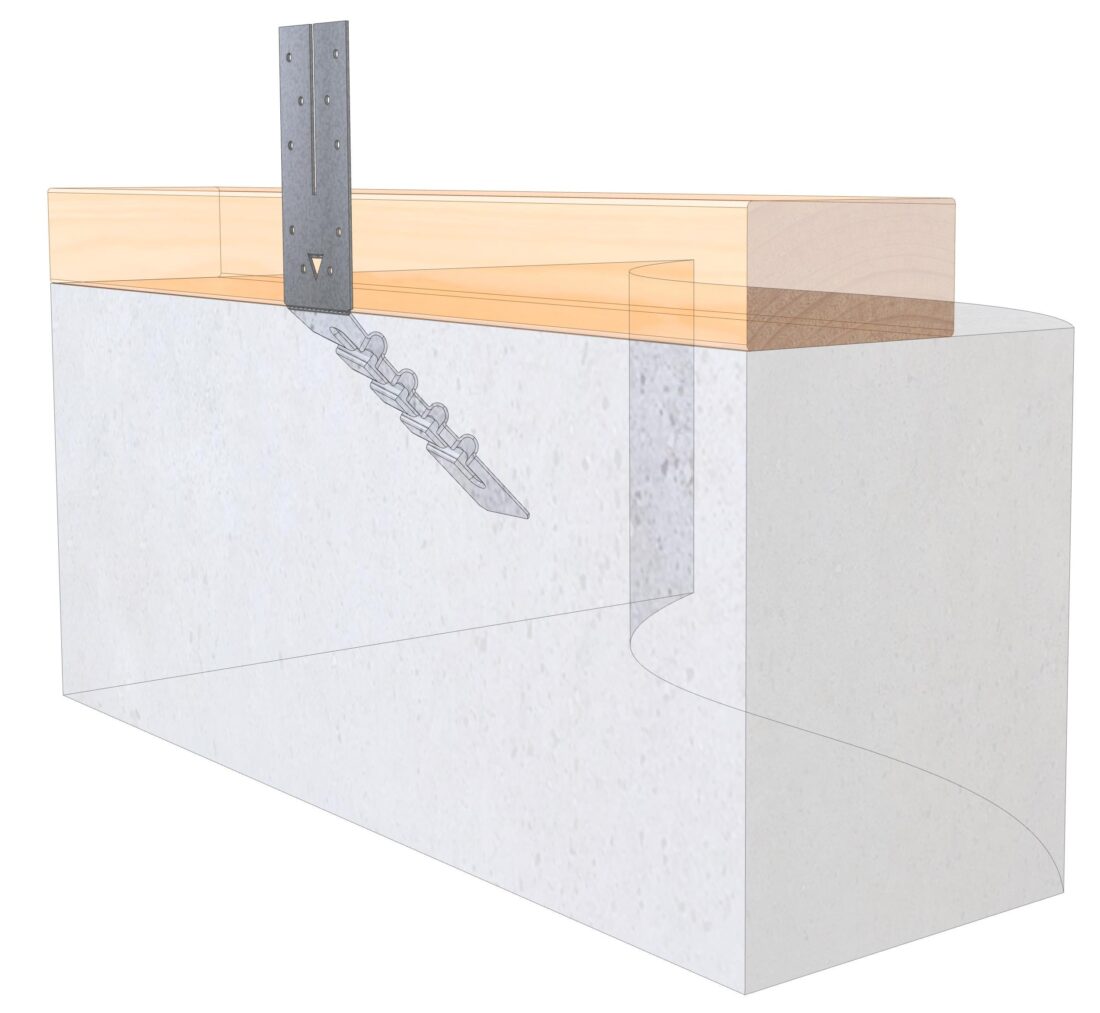

INSTALLATION
For application and design capacity information, refer to the Bottom Plate Anchor Data Sheet.
Bottom Plate Anchor
| Product Code | Size | Pack Quantity |
|---|---|---|
| BPA | 235 x 50 x 1.2mm | 50 |
Note: Pryda BPA is no longer available.
