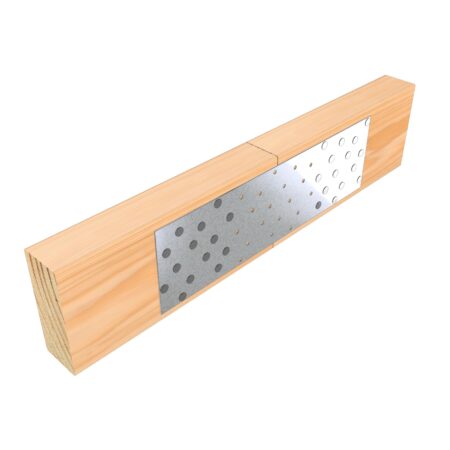

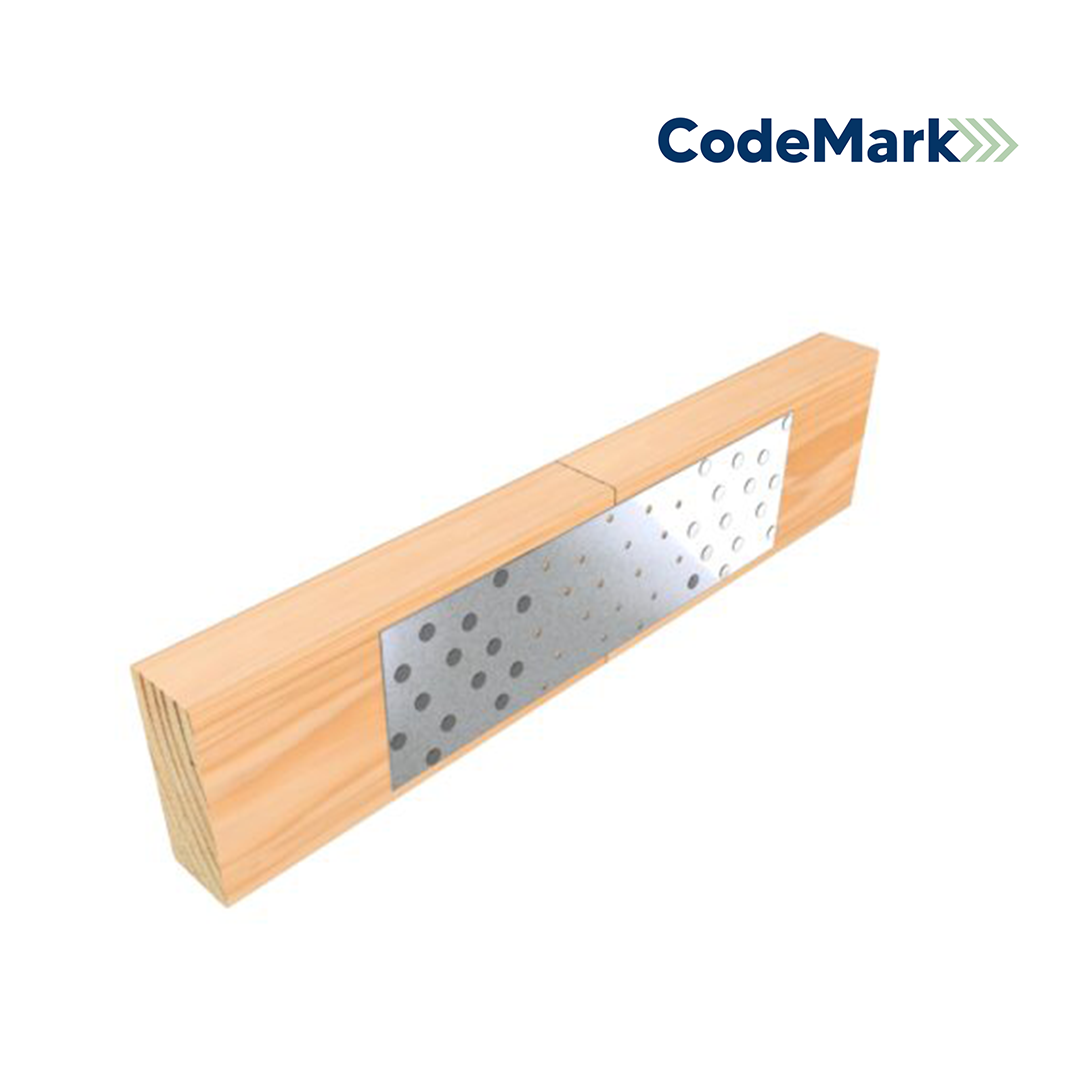

A pre-punched plates for joining or connecting timber
USES
• Joining trusses on-site that have been made in parts in the factory
• Fixing trusses to poles
• Any heavy duty timber connection where a Knuckle nailplate will not suffice
• Joining beams
• Repair work over existing fixings
FEATURES
SIMPLE: Pre-punch holes ready for onsite application using nail fix or screw fix.
FAST: Simply select the correct plate size and type, place into position, and fasten through the pre-punched holes to suit design application.
DURABLE: Can be used for joining trusses on-site that have been made in parts in the factory. Fixing trusses to beams. Any heavy-duty timber connection where a Knuckle nail plate will not suffice. Joining beams. Repair work over existing fixings.
APPLICATION
For application and design capacity information, refer to the Nail-on Plates and Angle data sheet.
*This product is no longer available.
Pryda Nail-on Plates 1.0mm
| Product Code | Size | Pack Quantity |
|---|---|---|
| NPA75/125 | 75 x 125mm | 60 |
| NPA75/190 | 75 x 190mm | 40 |
| NPA75/250 | 75 x 250mm | 30 |
| NPA75/315 | 75 x 315mm | 25 |
| NPA75/380 | 75 x 380mm | 20 |
| NPA100/190 | 100 x 190mm | 28 |
| NPA100/190SS (Stainless Steel) | 100 X190mm | 10 |
| NPA100/315 | 100 x 315mm | 17 |
| NPA150/315 | 150 x 315mm | 12 |
Pryda Nail-on Plates 2.0mm
| Product Code | Size | Pack Quantity |
|---|---|---|
| NPB75/380 | 75 x 380mm | 10 |
Pryda Nail-on Bars 1.0mm
| Product Code | Size | Pack Quantity |
|---|---|---|
| NPA75BAR/S (Stainless Steel)* | 75 x 1260mm | 1 |
| NPA100BAR/S (Stainless Steel) | 100 x 1260mm | 1 |
| NPA150BAR/S (Stainless Steel)* | 150 x 1260mm | 1 |
*The product marked with * is no longer available.
Pryda Nail-on Bars 2.0mm
| Product Code | Size | Pack Quantity |
|---|---|---|
| NPB75 BAR* | 75 x 1260mm | 1 |
| NPB100 BAR | 100 x 1260mm | 1 |
| NPB150 BAR* | 150 x 1260mm | 1 |
*The product marked with * is no longer available.
Pryda Nail on Angle 1.0mm
| Product Code | Size | Pack Quantity |
|---|---|---|
| NPA | 190 x 50 x 50mm | 25 |
