Pryda’s newly released Hip End Roller Press is designed for quick and easy small roof truss production.

The Hip End Roller Press’s leading-edge safety system ensures optimum care for your staff whilst producing trusses in the fastest way possible.

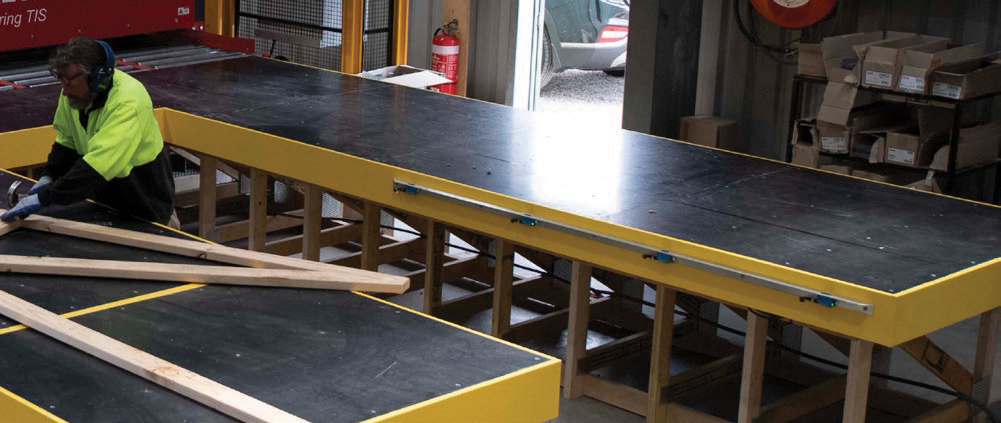

The infeed area incorporates multiple work zones and with its heavy-duty finish roller press technology, the HER press will improve overall plant productivity. The wide roller press allows for almost any height truss to be easily processed and plate pressing in one pass.

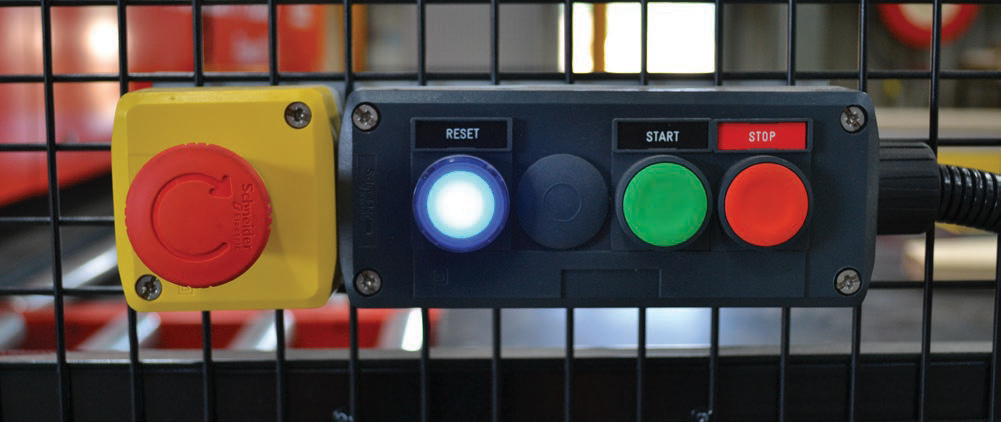

The simple operational controls are placed in various locations around the press and include a fully monitored interlocked safety system.

The Australian designed and built press allows for easy maintenance, and with minimal training required. Its variable speed drive (VSD) provides a safe, immediate stopping of the roller if required whilst minimising power consumption during normal operation.

HIP END ROLLER SPECIFICATIONS

SPACE REQUIREMENTS / SYSTEM

Min Height (overall) 2.3m
Min Width (overall)5.3m
Length (overall)Standard 14.5m including
infeed table/outfeed
Weight (approx.)6 tonnes

POWER REQUIREMENTS

Max Load 10 amps Running 5.0 10 amps max
415V, 3 phase (5-wire), 50 cycles

PERFORMANCE

Effective Pressing Length Unlimited
Effective Pressing Width4.2 m
Standard Timber Thickness35mm (nom.)
Pressing Speed40 m/min nom.
Operation hours/day8hr (typically)
HER Press

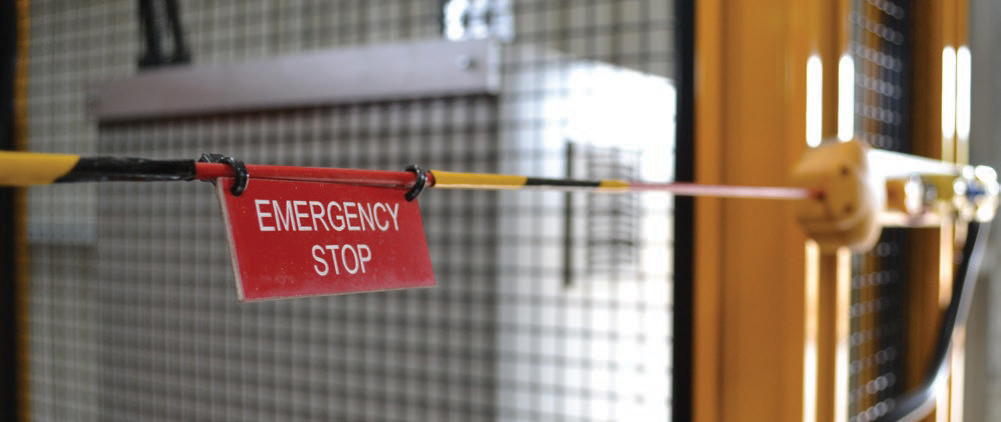

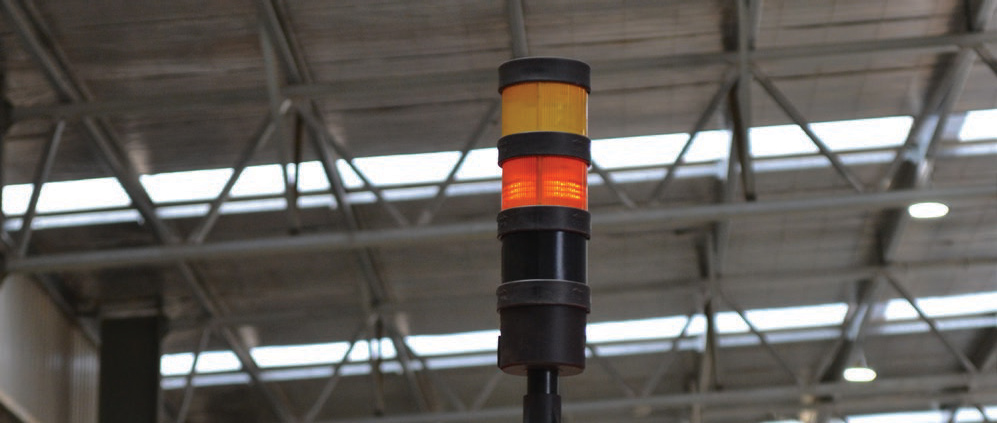

SAFETY FEATURES

HIP END ROLLER OPTIONS

  • Infeed roller system
  • SpeedTruss drilling unit
  • Outfeed roller system
  • Pryda Production Viewer software & consoles

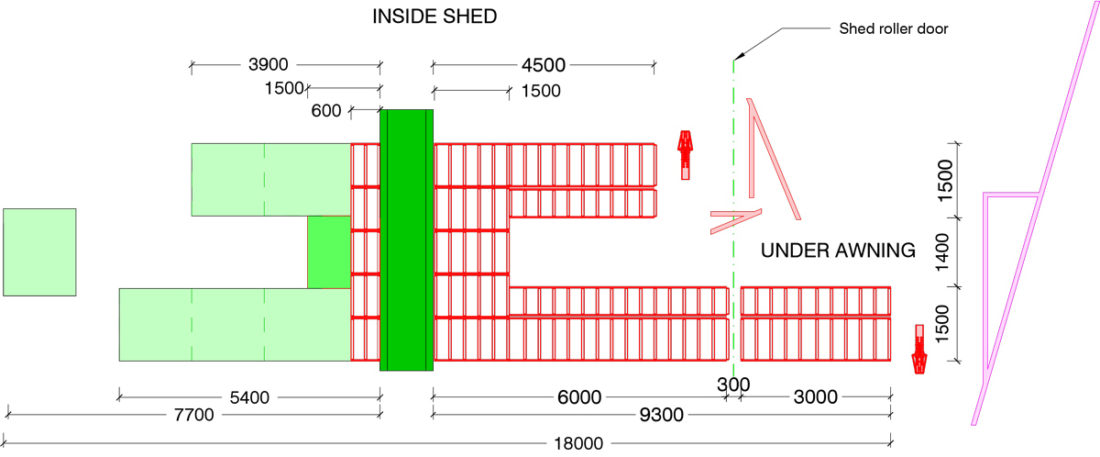

FOOTPRINT

(suggested)

HER Footprint
