Variable Skew Angle Bracket

Strong and versatile bracket that can be used as a seat or cleat for beams

USES

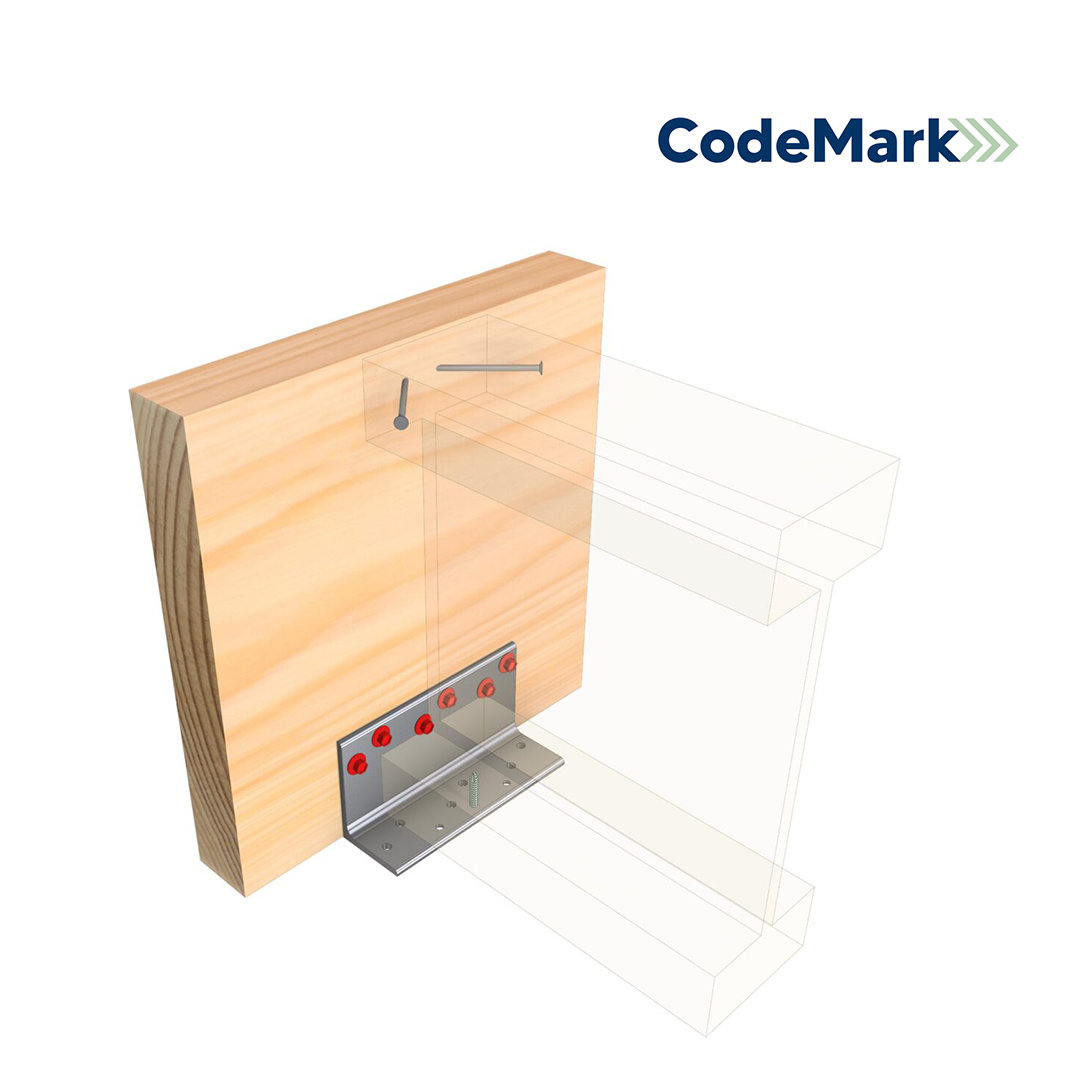

Support beams or trusses coming in at any direction, or in a ‘vertical’ orientation as an angle cleat for beam to beam connections.

FEATURES

EASY: Simple design.
FAST: Fixed with Pryda 12-35mm screws.
DURABLE: 5mm thick, HDG galvanised steel. Can be used in a ‘horizontal’ orientation as an angle seat to support beams or trusses coming in at any direction, or in a ‘vertical’ orientation as an angle cleat for beam-to-beam connections.

INSTALLATION

For application and design capacity information, refer to the Variable Skew Angle Bracket Data Sheet.

Variable Skew Angle
